ASPEE PUMPS # INDFOS #DRP & H.S G.M VALVES # VEESON & AARKO C.I BALL VALVES # DYNAMIC PRESSURE GAUGES







bullet

"ASPEE" Power Sprayer & Spares. Sales & Service.

"ASPEE" Power Sprayer

"ASPEE" Three Piston Power Sprayer PS-16

"ASPEE" Double Piston Power Sprayer PS-26

"ASPEE" Single Piston Power Sprayer PS-18

Description HDP (PS-16)
Power 3 HP
No. of Piston 3
Suction Capacity 36LPM
Maximum Pressure 400 PSI
Pump Rev. 950 RPM
L x W x H in MM 340 x 285 x 300
Weight Without Pulley & Oil 12 KG
Description HDP (PS-26)
Power 3/2 HP
No. of Piston 2
Suction Capacity 24/13 LPM
Maximum Pressure 400 PSI
Pump Rev 950 RPM
L x W x H in MM 320 x 240 x 395
Weight Without Pulley & Oil 9.6KG
Description HSP (PS-18)
Power 1 HP
No. of Piston 1
Suction Capacity 12 LPM
Maximum Pressure 400 PSI
Pump Rev 950 RPM
L x W x H in MM 285 x 195 x 300
Weight Without Pulley & Oil

"ASPEE" Power Sprayer Spares

Connecting Road Assembly HTA /2+3+4

Crank Shaft. "ASPEE"
HCA /1

Piston HTN-1

Piston Guide HTN/4

Gland Washer (Nitrile) HTN/8N

Brass Oil Ring HTN/7B

Gland Nut HTN/ 6

Valve Seat Assembly HTB/2 to 6n

Valve Washer(Nitrile)
HTB /2N

Springs HTB/5

Crank Case Assembly
 HTC/32 C
Back Cover Assembly
HTC/ 27A

 Ball Bearing HCA/5

Delivery Chamber Pressure Gauge Suction Chamber
Valve Box HTB/1N   High Pressure Gun SPGW   Bearing Piece HCA/21

Pressure Vessel

bullet

"INDFOS" Pressure Switch & Solenoid Valve

"INDFOS" Pressure Switch & Solenoid Valve

"INDFOS" Pressure Switch IPS Series

"INDFOS" Pressure Switch 'B' Series

Pressure Control Switch -Type IPS

Type Code Range Differential
IPS-70 020D8275 0-70 psig 4-55 psi
IPS-100 020D8276 0-100 psig 7-85 psi
IPS-200 020D8277 85-215 psig 20-70 psi
IPS-400 020D8278 85-425 psig 45-115 psi
Application : Boilers, Air Compressors, Gear Box, Lubrication System for Diesel Engines, Locomotives etc.
Technical Date (PS/PSU)
Body Material Mild steel
Sensing Element Phosphor Bronze Bellows.
Process Connection 1/4" BSP (F)
Contact Ratings 10A 40-380V AC.

B Series Switches:

B-Series switches are built for reliability and long life.A rugged diaphragm sealed piston actuator provides set point repeatability of ± 1%. The enclosure of die-cast aluminium and is available in weather proof and explosion proof versions (TABLE A). A wide variety of SPDT and Dual (2) SPDT snap action switches are available to meet many elctrical load requirements (TABLE B). Applications include:Pumps, Compressors, Heat Exchangers, Boilers, Marine Equipment, Hydraulic Systems, Lube Systems, etc.
Ambient operating limit - 300 C to 650 C for all Switches.

"INDFOS" Pressure Switch MP Series

"INDFOS" Pressure Switch Type PSU

Pressure, Temperature Cut-Outs For Refrigeration Plats MP

Item Code No Application Range Differential
1 060-0142 L.P. Cut-Out 30 Cm Hg 0.5 To 6 Atmg
1A 060-0144 L.P. Cut-Out
(Ammonia Service)		 30 Cm Hg
To 7 Atmg
0.5 6 Atmg
5 060-0147 H.P. Cut-Out 6 To 30 Atmg 3 To 8 Atmg
5A 060-0106 H.P. Cut-Out
(Ammonia Service)		 6 To 22 Atmg 2 To 8 Atmg
5R 060-0148 H.P. Cut Out With Manual Reset 6 To 30 Atmg 3 Atmg Fixed
5AR 060-0108 H.P. Cut-Out (Manual Re-Set Type Ammonia Service) 6 To 22 Atmg 2 Atmg Fixed
15 060-0150 Lp/Hp Cut-Out Lp:30 Cm Hg To 7 Atmg
Hp Range
8 To 30 Atmg		 0.5 To 6 Atmg 4 Atmg Fixed
15A 060-0153 Lp/Hp Cut-Out
(Ammonia Service)		 Lp 30 Cm Hg To 7 Atmg
Hp 8 To 22 Atmg		 0.5 To 6 Atmg  3 Atmg Fixed
15R 060-0151 Lp/Hp Cut-Out (Manual Re-Set) Lp: 30 Cm Hg To 7 Atmg
Hp 8 To 30 Atmg		 0.6 Atmg Fixed 4 Atmg Fixed
15AR 060-0154 Lp/Hp Cut-Out (Manual Re-Set Type Ammonia Service) Lp:30 Cm Hg To 7 Atmg
Hp:8 To 22 Atmg		 06 Atmg Fixed 3 Atmg Fixed
55 060-B9424 Oil Safety Switch Diff Range
0.3 To 4.5 Bar		 Contact Diff Fixed 0.2 Atmg
55X 060-B8277 Oil Safety Switch For Dc Application Diff. Range
0.3 To 4.5 Bar		 Contact Diff. Diff. 0.2 Fixed
55A 060-B9433 Oil Safety (Ammonia Service) Diff. Range
0.3 To 4.5		 Contact Diff. Bar/Fixed 0.2 Atmg
61 (2M) 060-L012 Anti Freeze Thermostat Temp. -18 TO +130C 2.6 TO 30 0C At Min. 1.4 TO 13 0C At Min.
 Pressure Control Switch -Type PSU


Type Code Range Differential
PS-4B 031E0171 1-4 atmg 0.6-0.7 atmg
(8.5-10 PSI)

PS-9B 031E0175 2.5-9.5atmg 1.2-1.8 atmg
PSU-9B 031E0176 (.5.5-135 PSI) (17-26 PSI)
PS-15B 031E0179 7-15 atmg 1.7-2.3 atmg
PSU-15B 031E0180 100-213 PSI (24-33 PSI)
PSU-15X 031E0181 (X) 7-15 atmg 1.7-2.3 atmg

Application : Air Compressor, Pressure Water, Pumping System etc

Technical Date (PS/PSU)

Body Material

 Mild steel ‘U’ : with relif Valve
Sensing Element Nitrile Rubber diaghram ‘B’ : with manual shut off knob
Process Connection 1/2" BSP (F) ‘X’ : without Manual shut-off Knob
Contact Ratings 6A 500V AC (TPST)

"INDFOS" Solenoid Valve IMV Series

"INDFOS" Pressure Switch. RT Series

Industrial Solenoid Valve (Two Way Normally Closed)

Type Code Connection
IMV-3 32K4733 1/4" in BSP Tr. Ext.
IMVD-6 32K4933 3/8” in BSP Tr. Ext
IMVD-10 32K4973 1/2" in BSP Tr. Ext
IMVD-10 (Wa) 32K4983 (Wa) 1/2" in BSP Tr. Ext
Application : Air, Oil, Water, Towngas, Methane, Butane & Propane.
 Pressure Control Switch-Type RT

Type Code Range Differential
RT-121 (SB) 017-5215 75-0cm Hg.
(-1 TO 0) For Vacuum		 4-30 cm Hg.
(1.6-12 in Hsg)
RT-112 (SB) 017-5191 0.1-1.1 atmg
(2-16 PSIG)		 0.07-0.16 atmg
(1.0-2.0 psi)
RT-110 (SB) 017-5291 02-3 atmg
(3.40 psig)		 0.08-0.25 atmg.
(0.11-3.5 psi)
RT-200 (SB) 017-5237 0.2-6 atmg.
(3-85 psig)		 0.25-1.2 atmg
(4-17 psi)
RT-116 (SB) 017-5203 1-10 atmg
(15-140 psig)		 0.3-1.3 atmg
(4-18 psi)
RT-5 (SB) 017-5255 4-17 atmg
(30-240 psig)		 1.2-4 atmg
(16-57 psi)
RT-117 (SB) 017-5297 10-30 atmg.
(150-420 psig)		 1-4 atmg.
(14-57 psi)

Coil For Solenoid Valve

bullet

"DRP & H.S "Brand G.M., C.I. & C.S. Valves.

"ZOLOTO"  Valves

"DRP & H.S " Bronze Union bonnet Wheel Valve Screwed

"DRP & H.S " Bronze Steam Trap Screwed (IBR Certified)

"DRP & H.S " Bronze Fusible Plug (One Piece Design-IBR Certified)

"DRP & H.S " Bronze Gate Valve Screwed

"DRP & H.S " Cast Steel Globe Valve Flanged
(IBR Certified)

"DRP & H.S " Cast Iron Globe Steam Stop Valve Flanged (IBR Certified)

"DRP & H.S "Bronze Horizontal Check Valve Screwed

bullet

"W.J." Make C.I., C.S. & F.S. Valves. IBR & Non-IBR.

"W.J." Valves

"W.J." C.I. Bucket Type Steam Trap.
(IBR Certified)

"W.J." G.M. Pop Type Safety Valve
Screwed (IBR Certified)

bullet

"VEESON & AARKO " C.I. & C.S. Ball Valves.

"VEESON & AARKO " C.I. & C.S. Ball Valve

"VEESON & AARKO " C.I. S/P Design Ball Valve Flanged.

"VEESON & AARKO " C.I. S/P Design Ball Valve Screwed.

"VEESON & AARKO " C.I. T/P Design Ball Valve Flanged.

bullet

"KAMAL" C.I. Self Lubricating Taper Plug Valve

"KAMAL" C.I. Self Lubricating Taper Plug Valve

"KAMAL" C.I. Self Lubricating Plug Valve Flanged.

bullet

"DYNAMIC " Pressure, Vacuum & Compound Gauge.

"Air Master" Pressure Guage

Commercial Pressure Gauge
Sizes: 2 1/2",4" & 6" Dial

"DYNAMIC " Pressure Gauge, Heavy Duty Industrial Gauge, Back

Industrial Heavy Duty Glycerine Filled Pressure Gauge

bullet

"SUKUN" Make High Pressure Pump

"SUKUN" Make High Pressure Pump

HP 1508 , HP 1810

HPQL 2100 L

Model HP 1508 HP 1810
Rated Pressure 2500 PSI
 (175 BAR)		 3400 PSI
 (240 BAR)
Maximum Pressure 2800 PSI
(200 BAR)		 3800 PSI
(270 BAR)
Power (req.) 5-6 HP 10 HP
R.P.M. 2800 2800
L.P.M. 10 20
Weight 9.5 11.5
Dimensions 36x28x25 (cm) 38x30x27.5 (cm)
Model HPQL 2100 L
Maximum Pressure 60 BAR
Power (req.) 1.1 (kw)
R.P.M. 2800
L.P.M. 5.4

HPQL 280

HPLB 390

Model HPQL 280
Maximum Pressure 80 BAR
Power (req.) 1.3 (KW)
R.P.M. 2800
L.P.M. 9.8
Model HPLB 390
Maximum Pressure 110 BAR
Power (req.) 1.6 (KW)
R.P.M. 2800
L.P.M. 12.5
Weight 27 KG
Dimensions 57x33.2x39.6 (cm)

HPLT 18M

HPLT 8.7/18M

Model HPLT 18 M
Rated Pressure 2500 PSI (175 BAR)
Maximum Pressure 2800 PSI (200 BAR)
Power (req.) 5-6 HP
R.P.M. 2800
L.P.M. 10
Weight 42 KG
Dimensions 59x36x33 (cm)
Model HPLT 8.7 / 18 M
Rated Pressure 3400 PSI (240 BAR)
Maximum Pressure 3800 PSI (270 BAR)
Power (req.) 5-6 HP
R.P.M. 2800
L.P.M 10
Weight 45 KG
Dimensions 72x55.5x47 (cm)
bullet

"MARKO" Brand Rotary Joints

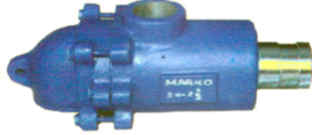

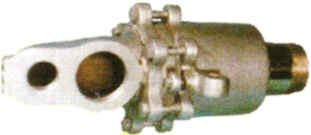

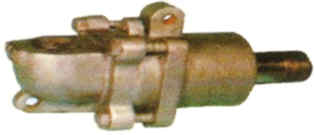

"MARKO" Brand Rotary Joints

"MARKO" Brand Rotary Joints

Size:   1/2" t0 7 1/2" BSP.
Type: 'MK LNAR' (Threaded Nipple). OR
          'MK LNARQ' (Quick Release Nipple)
         for Bucket Scoop type MG & Dryers. 		Size  : 1/4" to 4" BSP.
Type : 'MK SA' (Threaded Nipple) OR
           'MK SAQ' (Quick Release Nipple)
           for Water service and fluid.

Size: 3/4" BSP.
Type: 'MK SC' (Threaded Nipple) Or 'MK SCQ'
          (Quick  Release Nipple). for water service
          & fluid.

Size: 3/4" to 3 BSP.
Type: 'MK SDP(Threaded Nipple)
         Or 'MK SDPQ'(Quick Release Nipple)

Size  : 3/4" to 5" BSP.
Type :'MK SN'(Threaded Nipple)
         Or 'MK SNQ (Quick Release Nipple) for
         Bucket Scoop type MG & Dryers		 Size : 1/2" to 3" BSP.
Type: 'MK SBP'(Threaded Nipple)
         Or 'MK SBPQ (Quick Release Nipple)

"MARKO" Brand Rotary Spares & Accessories

Rings & Guides

Syphon Elbow

Carbon Graphite rings & Carbon filled teflon rings for MARCO Rotary Joint & as per your drawing. Size:  1/4" to 1" Made from G.M.& S.S. Solid Bar with S.S. seat Hinge & Cap.
Flexible Hoses

Size : 1/2" to 5" BSP
        S.S. Corrugated bellow type stream FLEXIBLE Hoses with S.S. Wire over braided with both
        side end connections as per requirements. Bellow in 321,304 or 316 as per requirement)
